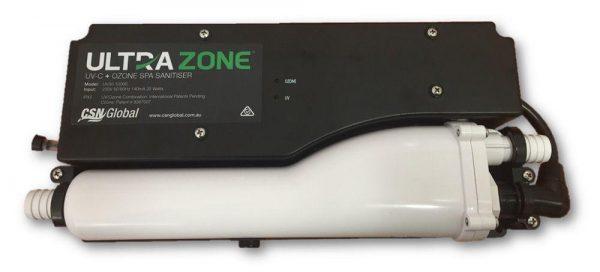

UltraZone UV-C and Bo3 Corona Discharge ozone Spa Sanitiser unit.
UltraZone combines ozone and UV-C sterilisation technology.
This unit works by the ozone gas being generated then injected and mixed into the UV chamber. The UV then reacts with the ozone to create a powerful oxidiser to burn off unwanted organic matter, the result is crystal clear and clean water.
Dimensions: Length – 350mm x Height – 160mm x Depth – 85mm
Ozone output is 50mg/hr and requires a minimum flow of 14LPM and max of 75LPM.
240V 50/60Hz 140mA 32watts.
The unit has an LED indicator:
Green LED Signals Ozone and UV operating normally
Flashing Yellow LED Signals UV-C Lamp needs replacement
Red LED Signals Non-operational
