Type of Product: |
Balboa electronic control pack with paired topside control (CABLES NOT INCLUDED)
|
Manufacturer: |
Balboa |
Power: |
Volts: 230vac Hz: 50 Amps: 16A or 32A
|
Specifications: |
Pump 1: Single or dual speed pump + circulation pump if required. Pump 2: Single or dual speed Pump 3 or Blower: Single speed Heater: x 1 (3KW) Ozone: x 1 Light: x1 12 volt or 230 volt (as required) Radio TV/AV: Point available |
Compatible With: |
Any retrofit system suitable for upgrades |
Connections: |
2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components. |
Dimensions: |
Length: 390 mm Width: 120 mm Height: 300 mm Topside: 248 mm x 79 mm |
Topside Buttons: |
TIME MODE/PROG WARM COOL LIGHT BLOWER JETS 1 and JETS 2 |
Items Included: |

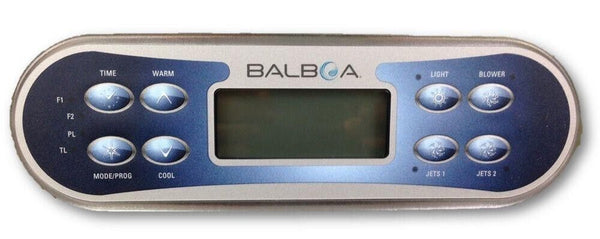

Balboa GL2001 mach 3 control box and Balboa ML700 topside control |
Additional Notes: |
* Cables not Included *
The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.
Its large hi-tech display screen gives you many features including setting your own filter times clock function detailed error reporting and component symbols.
|
