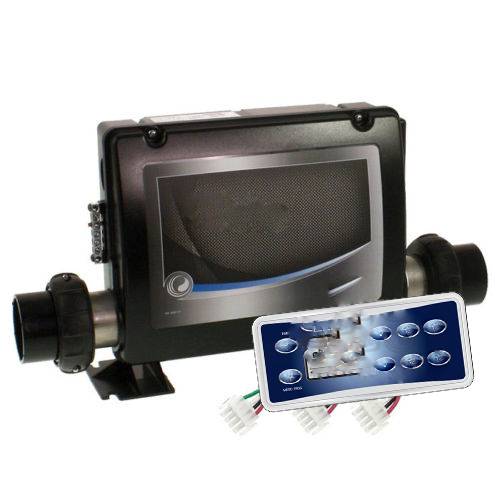

(Balboa Retrofit Kit 5.1) Balboa GS523DZ + VL801D

PK-BGS51

Aquarius Spa Parts

Price on application

Tax included.
Type of product: Balboa electronic control pack with paired topside control
Make and model: Balboa GS523DZ control box and Balboa VL801D topside control
Power: Volts: 230vac
Hz: 50
KW: 3
Specification: Pump 1: Single or dual speed pump + circulation pump if required.
Pump 2: Single speed
Pump 3: Single speed
Air Blower: x 1 (optional)
Heater: x 1 (3KW)
Ozone: x 1
Light: x1 12 volt
Radio TV/AV: Point available
Supply with:

6 x AMP cords for Single Speed Pumps / Blower / Aux / Ozonator
1 x AMP cord for Two-Speed Pump
1 x Light cable Light Housing and Light Bulb

Connections: 2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components.
Dimensions of Box: 270mm x 500mm (inc heater) 320mm (box only) x 120mm
Dimensions of Topside: 187mm x 83mm
Topside buttons: TIME MODE WARM COOL BLOWER LIGHT JETS 1 and JETS 2 (Jets 2 button operates pump 2 and pump 3 individually keep pressing the button to cycle through).
Additional notes:

The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.

This deluxe Touch Pad or Topside control allows you to set your preferred filter times by a built-in clock. Its large screen also gives you detailed information about the operation of the Hot Tub and symbols display when the individual components are running. This system also displays when it is in a filter cycle and you can read the time from it also.
