(Pack 4.4) Balboa GS520DZ with regular touch pad. 2 pump with air.

PK-51044

Aquarius Spa Parts

Price on application

Tax included.
Type of Product: Balboa electronic control pack with paired topside control (CABLES NOT INCLUDED)
Manufacturer: Balboa
Power: Volts: 230vac Hz: 50 Amps: 16A or 32A
Specifications: Pump 1: Single or dual speed pump + circulation pump if required. Pump 2: Single or dual speed pump Air Blower: x 1 (optional) Heater: x 1 (3KW) Ozone: x 1 Light: x1 12 volt Radio TV/AV: Point available
Compatible With: Any retrofit system suitable for upgrades
Connections: 2 inches socket heater union sleeves. Amp cables plug onto the PCB to operate the components.
Dimensions: Length: 500 mm (inc heater) 320 mm (box only) Width: Height: 270 mm Topside: 187 mm x 83 mm
Topside Buttons: TIME MODE WARM COOL BLOWER LIGHT JETS 1 and JETS 2

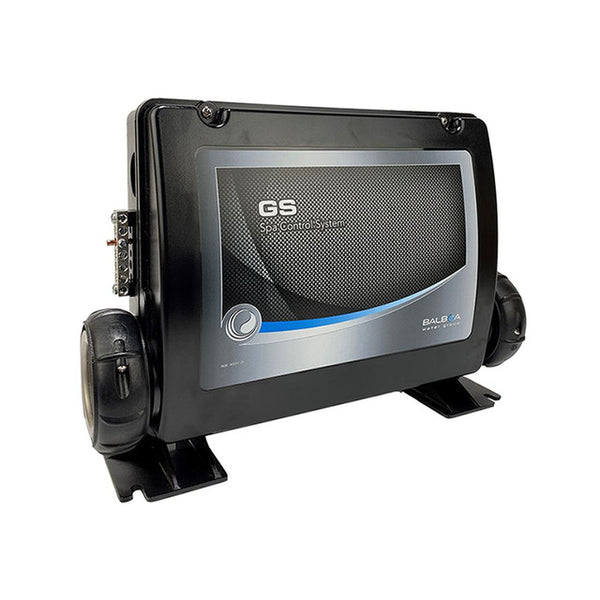

Items Included: Balboa GS520DZ control box and Balboa VL801D topside control
Additional Notes:

* Cables not Included *

The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.

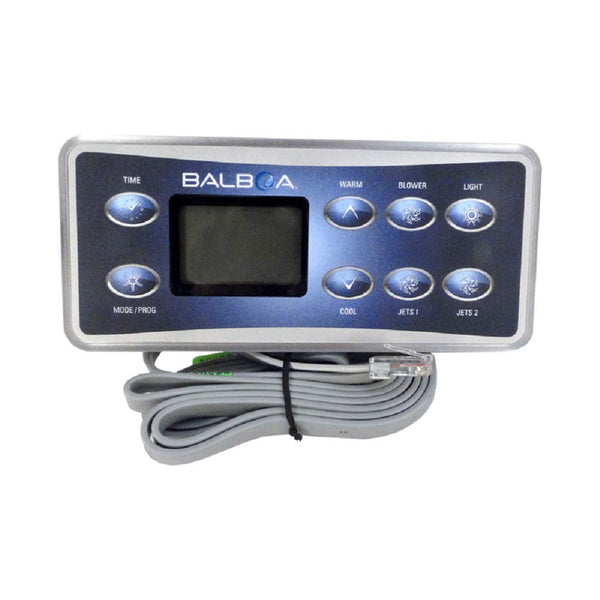

This deluxe Touch Pad or Topside control allows you to set your preferred filter times by a built-in clock. Its large screen also gives you detailed information about the operation of the Hot Tub and symbols display when the individual components are running. This system also displays when it is in a filter cycle and you can read the time from it also.

*SPECIAL NOTE* J17 IS A PORT THAT ALLOWS YOU TO RUN EITHER AN AIR BLOWER OR ANOTHER SINGLE SPEED PUMP. THE PORT IS PROTECTED BY A 10 AMP QUICK BLOW FUSE.
