(Pack 4.2) Balboa GS510SZ with long oval touch pad. 2 pump with air.PK-51042
Aquarius Spa Parts
Regular price $2,086.50
|Type of Product:||Balboa electronic control pack with paired topside control (CABLES NOT INCLUDED)|
Volts: 230vac Hz: 50 Amps: 16A or 32A
|Specifications:||Pump 1: Single or dual speed pump + circulation pump if required. Pump 2: Single speed Air Blower: x 1 (optional) Heater: x 1 (3KW) Ozone: x 1 Light: x1 12 volt Radio TV/AV: Point available|
|Compatible With:||Any retrofit system suitable for upgrades|
|Connections:||2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components.|
|Dimensions:||Length: 500 mm (ince heater) 320 mm (box only) Width: 120 mm Height: 270 mm Topside: 248 mm x 79 mm|

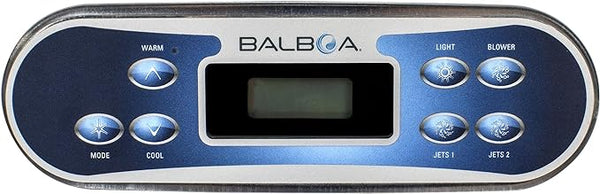

|Topside Buttons:||Warm Cool Mode Jets 1 Jets 2 Blower and Light|

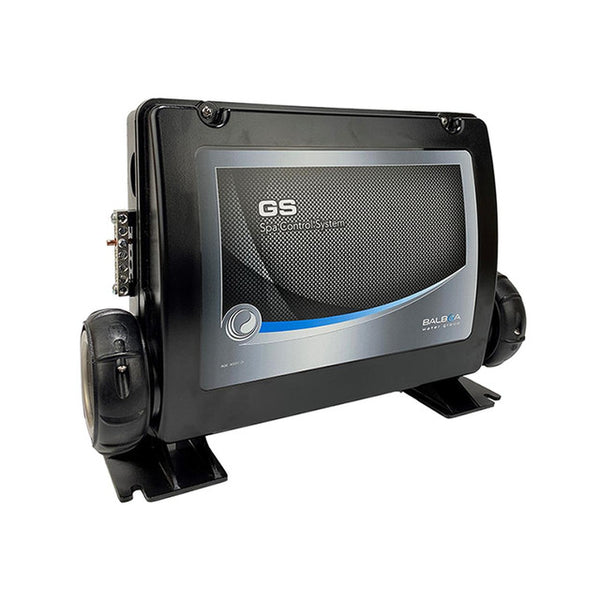

|Items Included:||Balboa GS510SZ control box and Balboa VL700S topside control|
* Cables not Included *
The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.
*SPECIAL NOTE* J17 IS A PORT THAT ALLOWS YOU TO RUN EITHER AN AIR BLOWER OR ANOTHER SINGLE SPEED PUMP. THE PORT IS PROTECTED BY A 10 AMP QUICK BLOW FUSE.
