Type of Product: |
Balboa electronic control pack with paired topside control (CABLES NOT INCLUDED)
|
Manufacturer: |
Balboa |
Power: |
Volts: 230vac Hz: 50 Amps: 16A or 32A
|
Specifications: |
Pumps: x 1 single or dual speed pump + circulation pump if required Air Blower: x 1 (optional) Heater: x 1 (3KW) Ozone: x 1 Light: x1 12 volt Radio TV/AV: Point available |
Compatible With: |
Any retrofit system suitable for upgrades |
Connections: |
2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components. |
Dimensions: |
Length: 500 mm (inc heater) 320 mm (box only) Width: 120 mm Height: 270 mm Topside: 178 mm 54 mm |

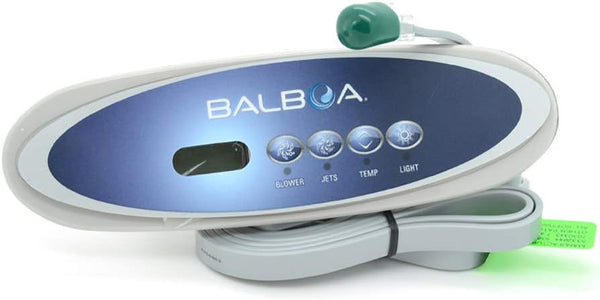

Topside Buttons: |
BLOWER JETS TEMP and LIGHT |
Items Included: |
Balboa GS501Z control box and Balboa MVP260 topside control |
Additional Notes: |
* Cables not Included *
The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.
*SPECIAL NOTE* J17 IS A PORT THAT ALLOWS YOU TO RUN EITHER AN AIR BLOWER OR ANOTHER SINGLE SPEED PUMP. THE PORT IS PROTECTED BY A 10 AMP QUICK BLOW FUSE.
|
