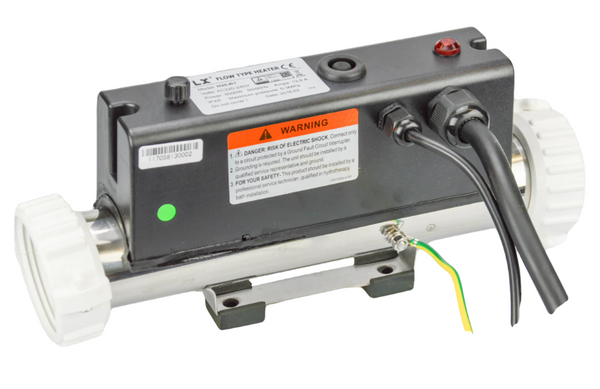

LX H20-RS1 2.0KW 1.5 inch heater With Thermoregulator


Aquarius Spa Parts

Sale price $166.01 Regular price $180.00

Tax included.
Type of Product: Heater assembly
Manufacturer: LX
Power: Volts: 240vac Hz: 50/60 KW: 2.0 Amps: 9.0

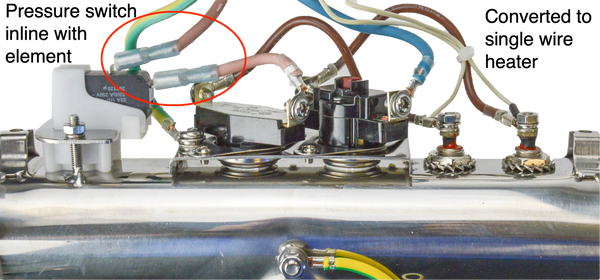

Specifications: Sensor compatibility: Sensor built in the heater is controlled by a thermoregulator on the side of the module.Material spec: PlasticRequired flow rate: Set by the pressure switch this switch will need to be pressurised if it runs straight to a big bore outlet with no bends there will be no back pressure and it may not work. Pressure Switch Operated by an extra Cord.
Compatible With: Most Chinese spas with a small plumbing change or can be used as a remote heater on a bespoke project
Connections & Fixings: 1.5 inches white plastic female sockets to connect to plumbing
Dimensions: Length: 170mm Diameter: 50 mm Between terminals: 120 mm Overall length complete: 340 mm
Additional Notes: High-limit thermal cutout built in. This unit is rated IPX5 and has CE approval.
