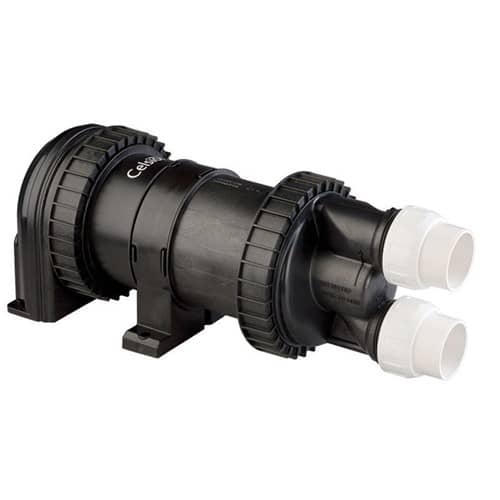

Suited to installations containing 6-8 jets. Patented ‘heat maintenance technology’ uses motor heat to assist in maintaining water temperature.
This model also has ‘boost heat’ supplied by a 1000W heater element.
Unit has built in air switch. An air button (purchased separately) is required to operate this unit.
Comes with 40mm unions and lead with C38 plug.
Electrical Specifications
Speed: Single
Voltage: 220-240V
Start Current: 12.2A
Run Current: 3.9A
Heater Current: 4.2A
Total Unit Current: 8.1A
Motor Input Power: 930W
Motor Output Power: 623W
Heater Input: 1000W
Dimensions
Length: 450mm
Width: 165mm
Height: 175mm
Weight: 7.7kg
Operating Limits
Max Water Temp: 40°
Max Ambient Temp: 40°
Noise Level: 60db
This pump retro fits the Davey XS Spa Bath range.
Also available in 1hp (Part No. C200AB) and 2hp (Part No. C400AB)
