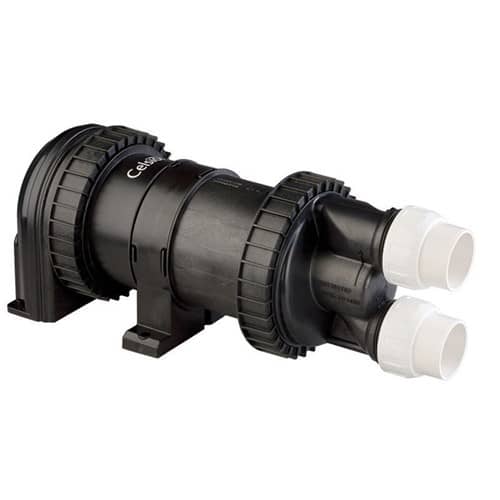

Suited to installations containing 4-6 jets. Patented ‘heat maintenance technology’ uses motor heat to assist in maintaining water temperature.
This model also has ‘boost heat’ supplied by a 1000W heater element.
This unit is operated by an electronic touchpad (Touchpad sold separately, part no. D-TBCS).
Comes with 40mm unions and lead with C38 plug.
Electrical Specifications
Speed: Single
Voltage: 220-240V
Start Current: 6.8A
Run Current: 3A
Heater Current: 4.2A
Total Unit Current: 7.2A
Motor Input Power: 690W
Motor Output Power: 414W
Heater Input: 1000W
Dimensions
Length: 450mm
Width: 165mm
Height: 175mm
Weight: 7.7kg
Operating Limits
Max Water Temp: 40°
Max Ambient Temp: 40°
Noise Level: 60db
This pump retro fits the Davey XS Spa Bath range.
