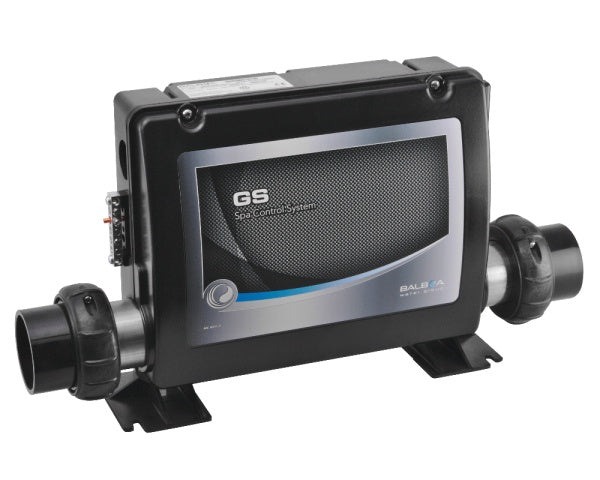

(Box 4.4) Balboa GS520DZ Control Box

BX-DZ520

Aquarius Spa Parts

Price on application

Tax included.
Type of Product: Balboa electronic control pack
Manufacturer: Balboa
Power: Volts: 230vac Hz: 50
Specifications: Pump 1: Single or dual speed pump + circulation pump if required. Pump 2: Single speed  Air Blower: x 1 (optional) Heater: x 1 (3KW) Ozone: x 1 Light: x1 12 volt Radio TV/AV: Point available
Compatible With: Systems fitted with topside controls from the deluxe VL range such as the VL801D also suitable for upgrades
Connections: 2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components.
Dimensions: Length: 500 mm (inc heater) 320 mm (box only) Width: 120 mm Height: 270 mm
Additional Notes:

The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.

This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.

Ideal replacement for a system that has 2 main pumps both dual speed.
