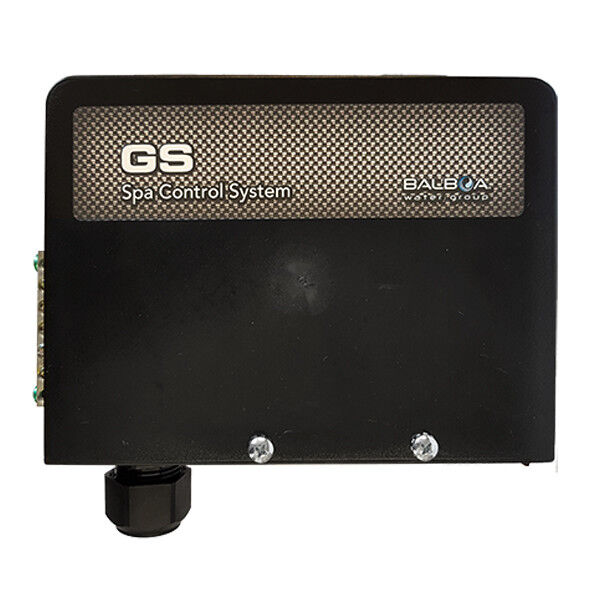

(Box 1.2) Balboa GS100 Control Box only (New Style)


Aquarius Spa Parts

Sale price $750.00 Regular price $900.00

Tax included.
Type of Product: Balboa electronic control pack
Manufacturer: Balboa
Power: Volts: 230vac Hz: 50 Amps: 16A
Specifications: Pump 1: Dual speed pump 1 Pump 2: N/A Air Blower: N/A Heater: x 1 2kW Heater is a separate unit (sold separately) which plugs into the board. Ozone: x 1 (230vac) Light: x1 12 volt Radio TV/AV: N/A
Compatible With: Works with any Mini or Duplex panel such as VL200:240:260 or VL401:402:403:404. This system is ideal for small roto mould spas with tight spaces to work in and small spa system upgrades.
Dimensions: Main plastic unit only Length: 190 mm Width: 60 mm Height: 137 mm
Additional Notes:

Controller Specifications

Heater Wattage: 2000w & 3000w

Max Current: 16amp

Power Lead: N/A

Power Lead Length: N/A

Heater Unions: 50mm or 40mm



This is a very useful entry level system. It has a small easy to mount easy to set control box and a separate remote heater.

This unit allows you to program timeout functions for both speeds of the pump via 2 dip switches.

This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
