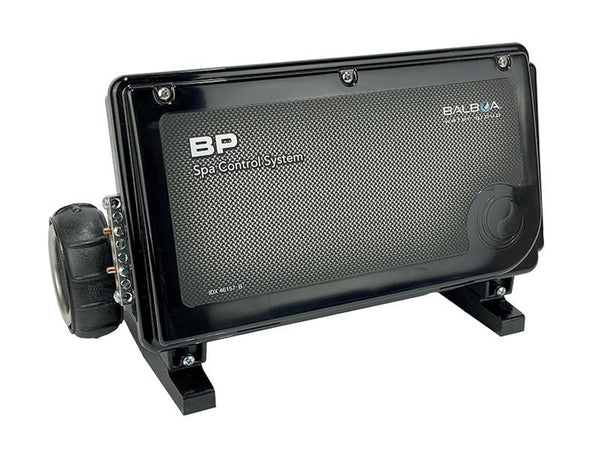

Balboa BP200 Control Box and Heater


Aquarius Spa Parts

Regular price $1,350.00

Tax included.
Type of Product: Balboa electronic control pack and heater
Manufacturer: Balboa
Power: Volts: 230vac Hz: 50
Specifications: Pump 1: Dual speed pump or Single speed if circulation pump used. Heater: x 1 (3kW) Ozone:   Light:
Compatible With: Balboa TP Series Topside panels such as TP400 TP600 TP800 TP900 and Spa Touch
Connections: 2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components.
Dimensions: Length: 435 mm (inc heater) 330 mm (box only) Width: 160 mm Height: 220 mm
Additional Notes:

A blower can be added to the Balboa BP200UX with an exp. board (SKU: CB-EX231).

A 1 speed pump can be added to the Balboa BP200UX with a exp. board (CB-EX233).

This system has been designed to be able to run from the comfort of your home or whilst you are at work or away. With the addition of the new WiFi receiver the BP200 can be operated via Android® iPhone® iPod touch® or iPad®

This is a generic unlicensed control box. This unit must be fitted by a competent individual or tradesman. Incorrect installation could invalidate the warranty.
