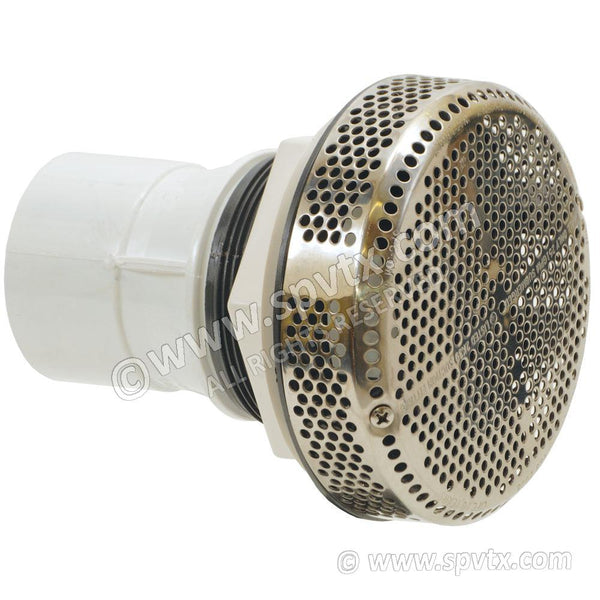

2 inch 200gpm Suction Assembly Stainless Steel

PL-10378

Aquarius Spa Parts

Price on application

Tax included.
Type of Product: Suction
Manufacturer: Waterway
Specifications: 2" S - Stainless Steel
Most Common Size Reference: 2 inch
Dimensions: Outer Diameter of face: 127 mm Outer Height stood on face: 140 mm Overall Length: 140mm Internal Diameter: 61 mm
Fits Hole Size: 85 mm
Commonly Used With: 2 inch rigid pipe and 2 inch flexible rigid pipe.
Additional Notes:

Optimum flow rate: 200 gallons per minute. When using a specific suction you should take into account the required flow intake for the pump you will be plumbing to and also the heater. On ALL systems it is required by BISHTA standards to install 2 suctions per pump to avoid entrapment and or disembowelment.

Best to use a plumbing cleaner then pipe cement to assemble. Pipework pushes inside this part at the female end.

Assemble through the spa shell with silicone you can use a gasket instead of the silicone but not both together as this often causes the gasket to spurge out the side and would cause a leak.
