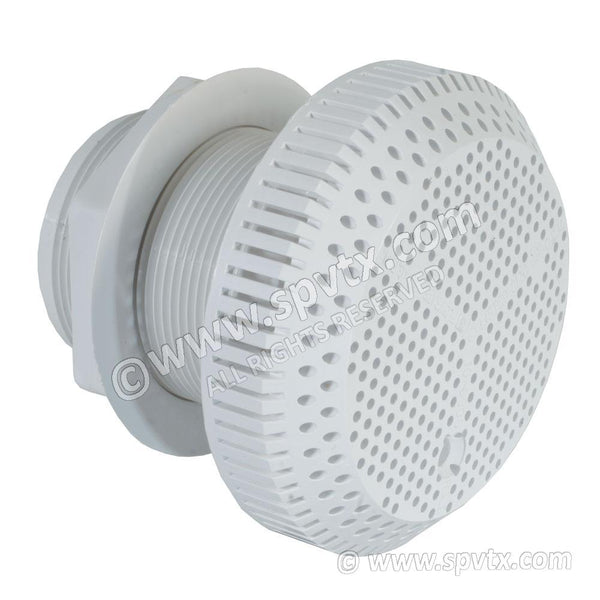

1.5 inch Long Wall Fitting Suction Assembly

PL-10366

Aquarius Spa Parts

Regular price $38.00

Tax included.
Type of Product: Suction
Manufacturer: Balboa
Specifications: 1.5" S - White
Most Common Size Reference: 1.5 inch
Dimensions: Outer Diameter of face: 100 mm Outer Height stood on face: 95 mm Overall Length: 95mm  Internal Diameter:48mm
Fits Hole Size: 63 mm
Commonly Used With: 1.5 inch rigid pipe and 1.5 inch flexible rigid pipe. Hindhead DIY series hot tubs and more.
Additional Notes:

Optimum flow rate: 100 gallons per minute. When using a specific suction you should take into account the required flow intake for the pump you will be plumbing to and also the heater. On ALL systems it is required by BISHTA standards to install 2 suctions per pump to avoid entrapment and or disembowelment.

Best to use a plumbing cleaner then pipe cement to assemble. Pipework pushes inside this part at the female end.

Assemble through the spa shell or wood/concrete with silicone you can use a gasket instead of the silicone but not both together as this often causes the gasket to spurge out the side and would cause a leak.

This suction assembly is usually used in a scenario where you would have to plumb through a thick wall i.e wood or concrete to a maximum thickness of 45mm.
