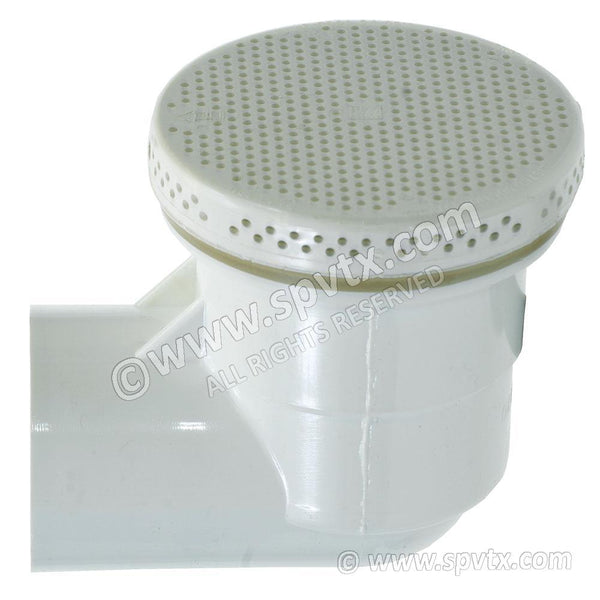

1.5 inch 90 Low Profile Suction or Drain White

PL-10368

Aquarius Spa Parts

Price on application

Tax included.
Type of Product: Drain but can be used as a suction
Manufacturer: Waterway
Specifications: 1.5" socket - white
Most Common Size Reference: 1.5 inch
Dimensions: Outer Diameter of face: 90mm Outer Height stood on face: 105mm  Overall Length: 115mm  Internal Diameter: 48mm
Fits Hole Size: 1.5 inch
Commonly Used With: 1.5 inch rigid pipe and 1.5 inch flexible rigid pipe.
Additional Notes:

Optimum flow rate: 100 gallons per minute. When using a specific suction you should take into account the required flow intake for the pump you will be plumbing to and also the heater. On ALL systems it is required by BISHTA standards to install 2 suctions per pump to avoid entrapment and or disembowelment.

Instead of a straight socket style connection this is a 1.5 inch 90 elbow fitting. This style of fitting has been seen in Chinese Spas but can be used as a space saver on any Hot Tub.

Best to use a plumbing cleaner then pipe cement to assemble. Pipework pushes inside this part at the female end.

Assemble through the spa shell with silicone you can use a gasket instead of the silicone but not both together as this often causes the gasket to spurge out the side and would cause a leak.
